UC-PD6
Input Voltage: AC 100-240V 50/60Hz
Rated Output - USB C1: DC 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5A, 28V/5A, PPS 3.3V-21V/5A (Max 140W)
Rated Output - USB C2: DC 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5A, PPS 3.3V-21V/5A (Max 100W)
Rated Output - USB C3, C4: DC 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5A, PPS 3.3V-21V/5A (Max 100W) in single use. 2 port total Max 100W
Rated Output - USB C5, C6: DC 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5A, PPS 3.3V-21V/5A (Max 100W) in single use. 2 port total Max 100W
DC Connector: 6 x USB Type-C port
LCD Display - Status: Charging condition (RED: charging, GREEN: near finish, flashing ORANGE: standby)
LCD Display - Details: Output voltage/current/power to each port and 6ch total
Operating Temperature: 32°F ~ 104°F
Operating Humidity: 20% ~ 80% RH
Dimensions: approx. 4.720 (W) x 1.850 (H) x 8.846 (D) inches
Weight 2.65 lbs

UC-PD6

Price: $499.00
Adding… Item added

6ch 440W USB-PD Charger

Description

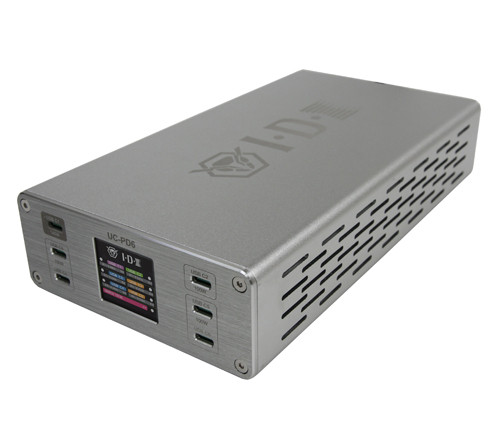

UC-PD6 is a 6ch quick charger equipped with six USB Type-C ports that support the USB PD standard. It supports a total output of up to 440W, allowing you to simultaneously charge up to six USB PD-compatible IDX batteries. In addition, it provides reliable power supply to a wide range of devices, including USB PD-supported laptops, smartphones, and tablets.

Key Features:

  • 440W USB-C 6ch quick charger
  • USB-C1 supports PD3.1, can charge up to 140W
  • USB-C2 supports PD3.0, can charge up to 100W
  • USB-C3, C4 and C5, C6 support PD3.0, can charge up to 100W when used alone and up to 50W each when used simultaneously
  • A colored LCD screen to indicate charging status allowing users to see progress from a distance at a glance
  • Protection features: Over-voltage, Over-current, Short circuit, Over temperature
  • Compatible batteries: DUO-CP, Imicro-P, ZEN-CG, SB-UPD, SL-FPD and HV B-Mount
  • 6 USB-C PD cables which support PD3.1 (up to 240W) are included (cable length: approx. 39.37 inches)
  • 2 Year Warranty
Resources

  Datasheet

  Operation Manual

Technical Specifications
!
